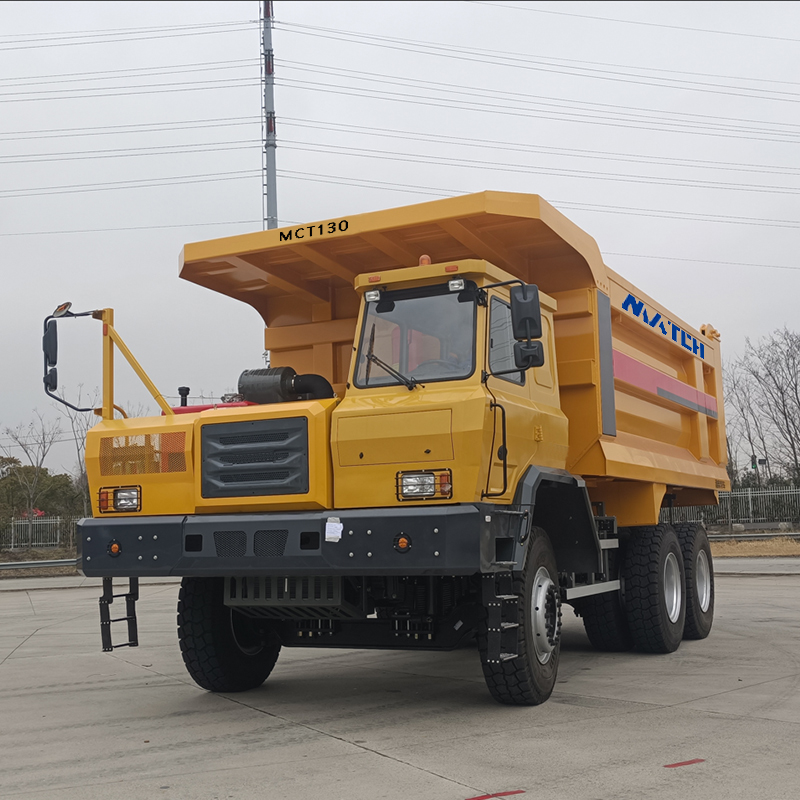

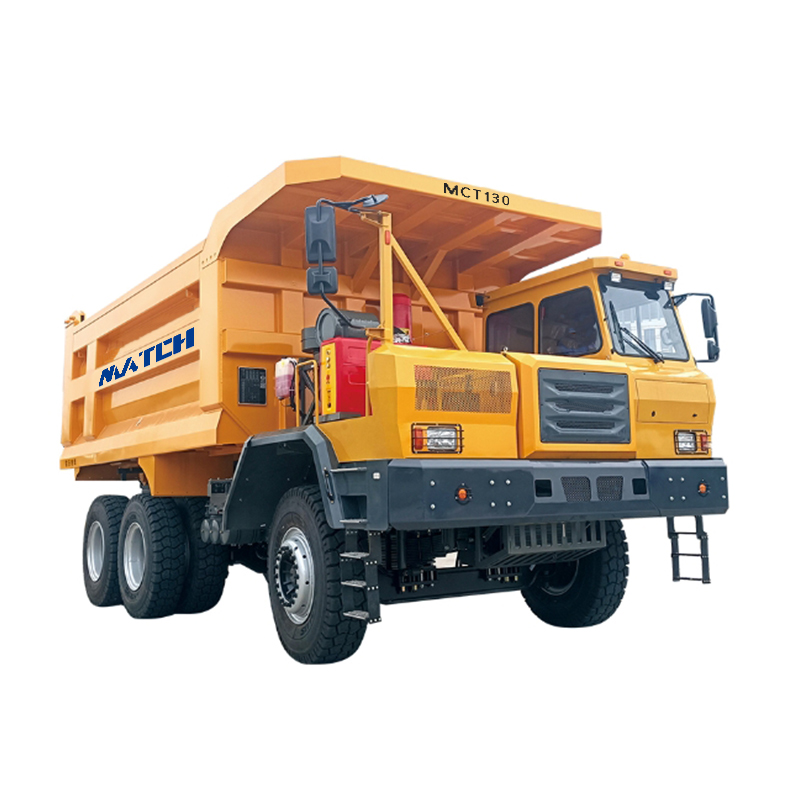

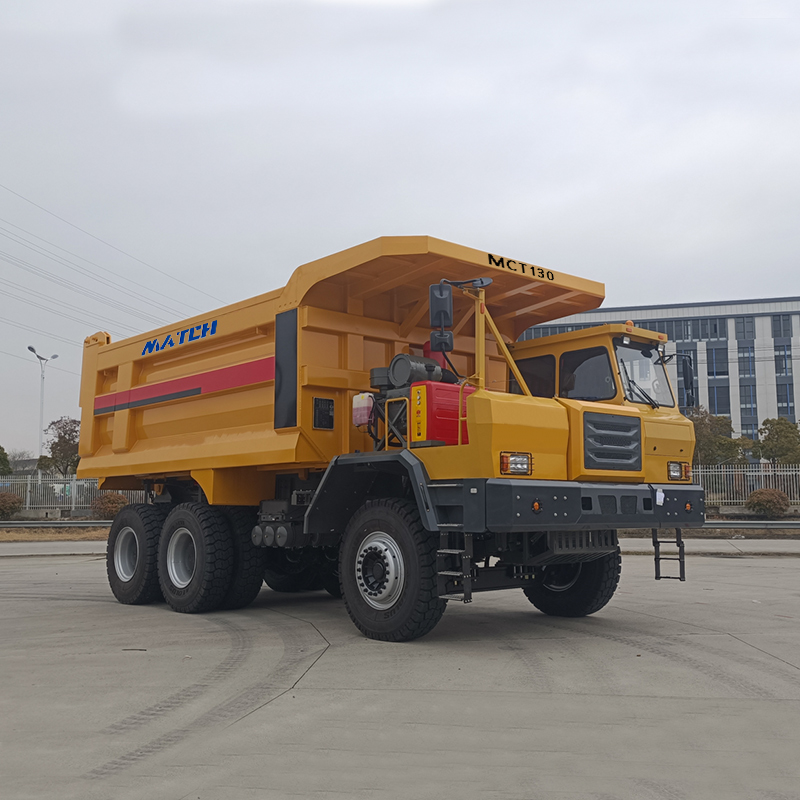

MCT130 Mining Dump Truck

Gross vehicle weight(t): 130

Curb weight (t): 46.35

Payload mass(t): 90

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

The ‌MCT130 Dump Mining Truck‌ is a rugged, high-capacity off-road hauler designed to maximize productivity in open-pit mines, quarries, and large-scale construction sites. Built with cutting-edge engineering and reinforced components, the MCT130 delivers unmatched payload capacity, fuel efficiency, and durability, ensuring reliable performance in the harshest operating conditions. Whether transporting ore, overburden, or aggregates, the MCT130 sets the standard for safety, longevity, and cost-effective operation in the mining industry.

Features:‌

  1. Massive Payload & Durability‌

    • ‌110-Metric-Ton Capacity‌: Optimized for hauling high-density ores, coal, and overburden with a reinforced, abrasion-resistant steel body.
    • ‌Ultra-Robust Frame‌: High-tensile-strength alloy chassis engineered to withstand extreme torsional stress and repetitive loading cycles.

  2. ‌Powerful & Eco-Friendly Engine‌

    • ‌2,000 HP Tier 4 Final/Stage V Diesel Engine‌: Delivers exceptional torque and climbing power while meeting global emissions standards.
    • ‌Intelligent Fuel Optimization‌: Adaptive throttle control and eco-mode reduce fuel consumption by up to ‌18%‌ versus previous models.

  3. ‌Advanced Terrain Adaptability‌

    • ‌All-Wheel Drive & Traction Control‌: Ensures stability and traction on muddy, slippery, or uneven haul roads.
    • ‌Giant 45-Inch Radial Tires‌: Specially designed for puncture resistance and longevity in rocky environments.

  4. ‌Operator-Centric Cabin‌

    • ‌Ergonomic ROPS/FOPS Cabin‌: Soundproofed, climate-controlled cabin with 360° visibility, air-suspension seats, and a touchscreen control panel.
    • ‌AI-Powered Safety Suite‌: Includes collision avoidance, blind-spot monitoring, and fatigue detection systems for enhanced safety.
Performance Parameter
ension Spefication Model MCT105 MCT110 MCT120 MCT130
Gross vehicle weight(t) 105 105 120 130
Curb weight (t) 36.4 36.6 46.35
Payload mass(t) 75 75 85 90
Overall dimensions (L×W×H) (mm) 10920×3860×4730 9350×3810×4180 9400×3810×4250 10215×4050×4560
Body Capacity(m³) 60 38 43 50
Wheelbase(mm) 5000+1780 3885+1780 3950+1780 4300+1840
Wheel Track(mm) 2630( Front 2734) 2734/2630/2630 2934/2634/2634 3100/2850/2850
Max. gradeability (%) 30 30 30 43
Min. Turning radius (m) 28 24 23 26
Min Ground Clearance(mm) 400 400 410 400
Maxium speed(km/h) 42 38 39 38
Axle Fully  loaded(t) 20/35/35 25/40/40 30/40/40 30/50/50
Engine Model WP13G530E310 WP13G530E310 WP14TG560E304 WP15HG770E304
Power (kW) 390 390 412 566
Speed (r/min) 2100 2100 1900 1900
Torque (N*m) 2300/(1200-1600) 2885/(1200-1500) 2900/(1200-1600)
CLUTCH Model 430 Single-chip pull, hydro-pneumatic booster Pull type single chip clutch single chip clutch
Transimission Model 8DS260A 8DS280 8DS280-FHB400
Drive Axle Type Central, hub planetary two-stage reduction with inter-axle differential lock
Max.loading(t) 40 50
Air Filter Model Multi-stage dust air filter
Radiator Structure Plate  fin radiator
Fuel Tank Capacity(L) 700L 850L
Steering Type Full Hydraulic Steering
System Pressure(MPa) 17
Flow(L/min) 40
