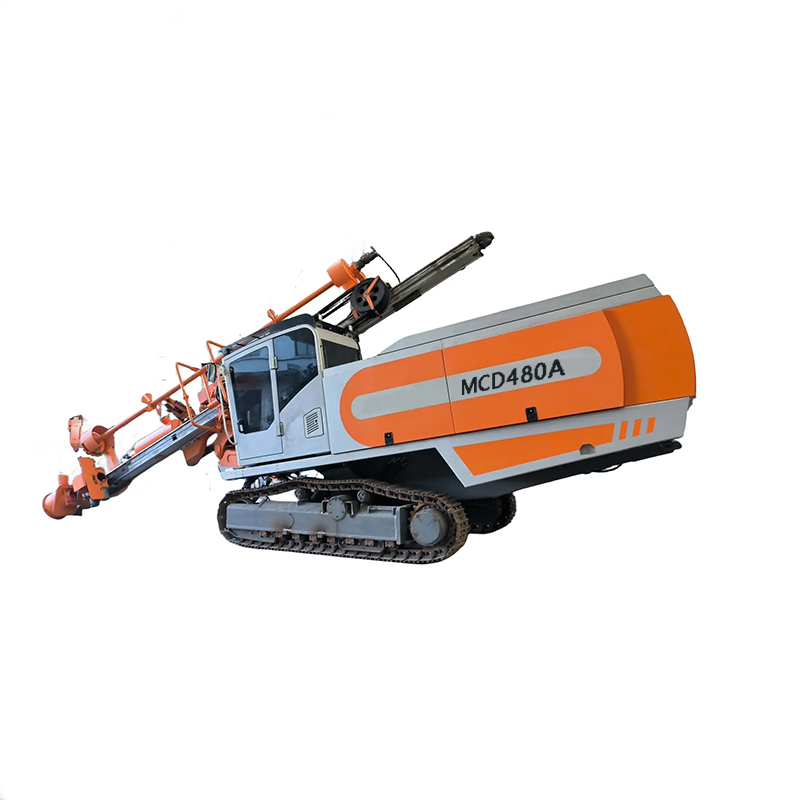

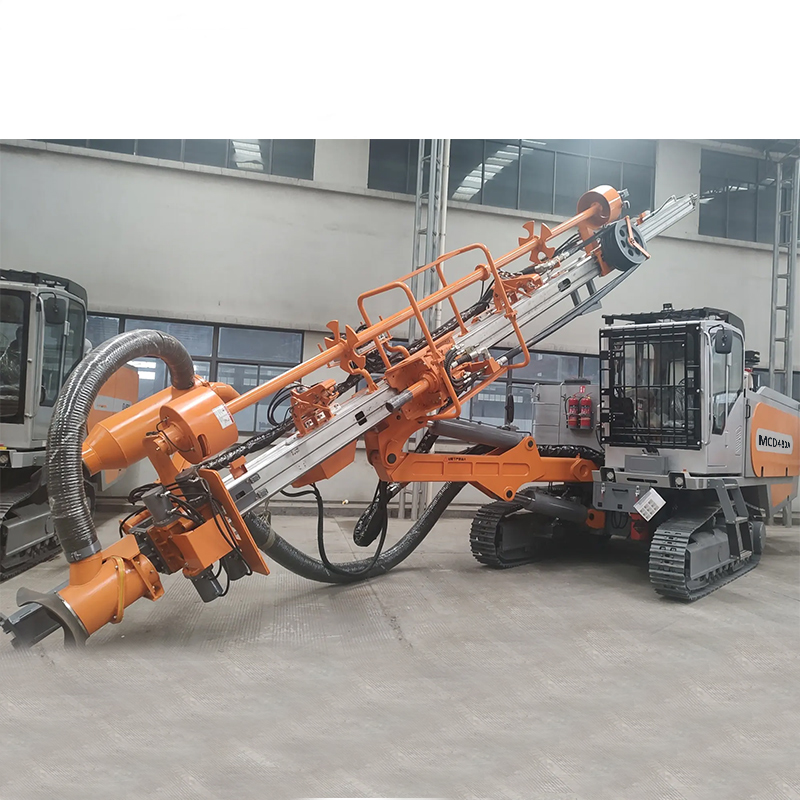

MCD 480A DTH Drilling Rig

Weight : 25,000KG

Drilling Depth: 35m

Drilling Diameter: 114mm

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

‌Product Description:‌

DTH Drilling Rig

According to different needs of users, we use high-quality diesel engines from Carter, Cummins, and Yuchai Co., Ltd. and large-displacement top-level dual-pressure screw main engine with a minimum of 24 bar; As production equipment for users, each structure of this series of products has a heavy-duty design with double safety factor and the highest-end component configuration; Stainless steel wear-resistant sleeves are used to protect the special pressed aluminum alloy propulsion beam and high-torque rotary head, which can achieve large-diameter operations while ensuring the light and flexible operation of the drilling rig.

‌Applications:‌

  1. ‌Mining Exploration:‌ Used for blast hole drilling in open-pit and underground mines.
  2. ‌Quarry Operations:‌ Drills holes for rock splitting, demolition, and aggregate production.
  3. ‌Construction Projects:‌ Suitable for foundation engineering, slope anchoring, and tunneling.
  4. ‌Water Well Drilling:‌ Capable of drilling deep wells for groundwater extraction.
  5. ‌Geotechnical Surveys:‌ Supports geological exploration and soil testing.

‌Key Features:‌

  1. ‌High Efficiency:‌ Equipped with a powerful hydraulic system and optimized percussion mechanism for fast drilling speeds and deep penetration.
  2. ‌Durable Design:‌ Heavy-duty steel structure and wear-resistant components ensure longevity in harsh conditions.
  3. ‌Versatility:‌ Adjustable drilling angles (0–360°) and compatibility with various drill pipe sizes (common diameter range: 90–200 mm).
Performance Parameter
MC D480A
MC D460A
DieselEngine
Model
QSZ13
QSL8.9
Brand
Cummins(DCEC)
Cummins(DCEC)
Rated Power
410kW
264 kW
Rotation Speed
1.800rpm
1,900 rpm
Capacity of Fuel Tank
750L
750 L
Screw Compressor
Air End Manufacturer
DG
JIUE
Model
DGH200G1
GE825
F.A.D
30m3/min
19 m/min
Working Pressure(Max.)
25bar
21 bar
Functional Specifications
Hole Range
152-230mm
115-152 mm
Hole Depth
35m
35 m
Drill Pipe Diameter
114mm(可选102mm)
102 mm
Drill Pipe Handling System
4+1
6+1
Hammer
6"/8"
4/5inch
Rotation Speed
0-80rpm
0 -105 rpm
Rotation Torque
5,600N.m
4,435 N.M
Drill Pipe Length
7m
5 m
Chassis
Tramming Speed
3km/h
High:3 km/h,Low: 1.5 km/h
Traction force
156.2kN
67.6 kN
Climbing Ability(Max.)
25°
25°
Track Oscillation
±10°
±10°
Ground Clearance
420mm
420mm
Weight&Dimensions
Weight (kg)
25,000
22,000
Size (mm)
11560x2700x3560
2700x11550x3560
