Weight : 4620KG
Drilling Depth: 30M
Drilling Diameter: 90-127 mm

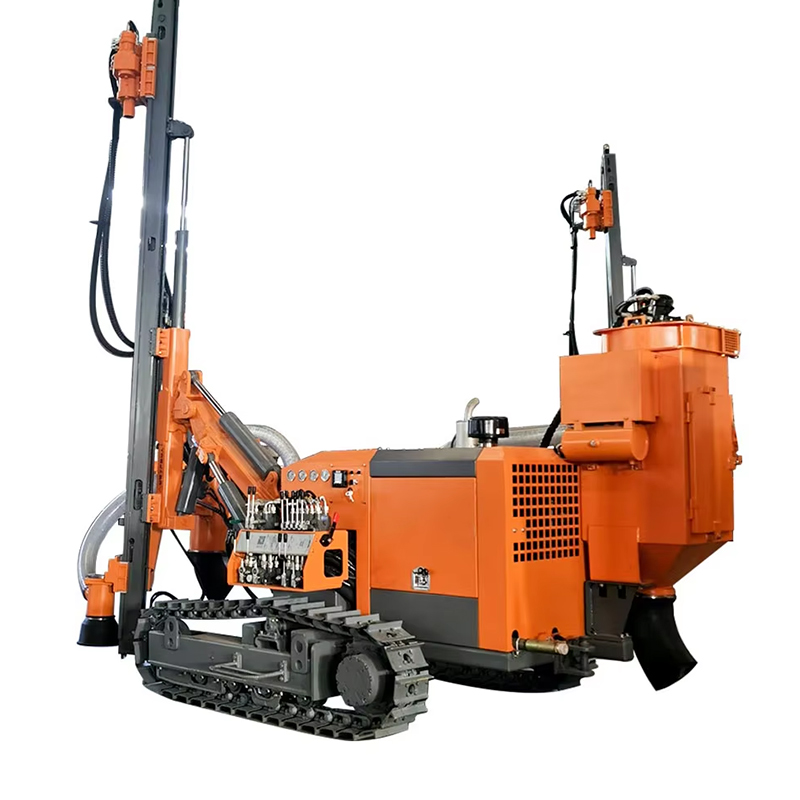

MATCH MC-416-1 is configured with a powerful dual- motor driven rotary head and its rotary torque can reach 1,950N.m, and its rotary speed is adjustable combined with a multi-way regulating valve. MC-416-1 meets the requirement to drill diameter of 130mm hole with 76mm drill pipe. Rotation speed is up to 150rpm which satisfying the needs of some customers for high-speed drilling of soft rock formations. Also MC-416-1 drill with standard crawler and piston hydraulic driven motors contributed the climbing ability stronger, more stable and more reliable. It's the highest configuration of its class.
|
item
|
value
|
|
Applicable Industries
|
Energy & Mining, Construction works, Drilling
|
|
Showroom Location
|
None
|
|
Place of Origin
|
China
|
|
Weight
|
4620KG
|
|
Warranty
|
1 Year
|
|
Marketing Type
|
Ordinary Product
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Engine, Gearbox
|
|
Key Selling Points
|
Competitive Price
|
|
Drilling Diameter
|
90-127 mm
|
|
Drilling Depth
|
30M
|
|
Condition
|
New
|
|
Type
|
DTH Drilling Rig
|
|
Power Type
|
Diesel
|
|
Brand Name
|
MATCH
|
|
Use
|
Ore
|
|
Dimension(L*W*H)
|
5,700×2,130 ×2,300 mm
|
|
Hole Range
|
DIAM: 90-127 mm
|
|
Drill Pipe Sizes
|
DIAM: 60x3000 mm
|
|
Rotation Torque(Max.)
|
1950 N.m
|
|
Rotation Speed
|
0- 150 rpm
|
|
Feed Force
|
15 kN
|
|
Pull Up Force
|
25 kN
|
|
Feed Type
|
Chain / cylinder
|
|
Tramming Speed(Max.)
|
2.5 km/h
|
|
Gradient
|
25°
|
|
Dimension
|
5700*2130*2200mm
|
