HORSEPOWER: Gross : 112kW 150hp NET: 109kW 146hp
OPERATING WEIGHT: 21200 – 21700 kg 46,700lb – 47,800lb
ENGINE MODEL: CAT C7.1 Engine
BUCKET CAPACITY: 1.0 – 1.76m³
Key Specifications
Certified Working Hours: 5,800–7,200 hours (approx. 50-60% remaining lifespan), validated for heavy-duty tasks like excavation and material handling.
Hydraulic and engine systems stress-tested under extreme loads to ensure leak-free operation and sustained power output.
Manufacturing Date (MFD): 2020, engineered with Tier 4-compliant technology and reinforced structural durability.
Chassis and boom integrity verified with no history of cracks or major repairs.

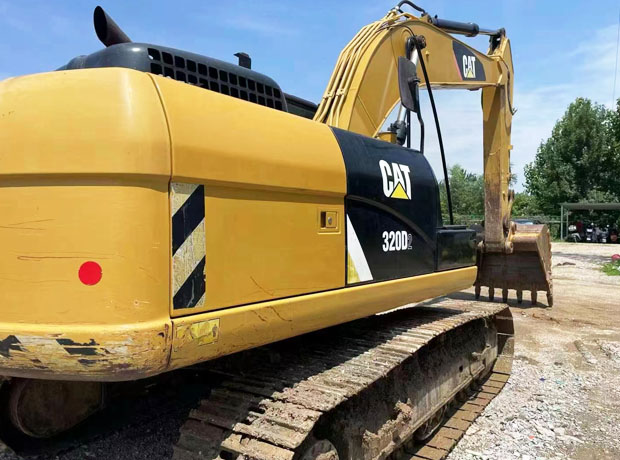

The 320D2 is configured for heavy construction, and it will deliver great fuel savings and productivity in truck loading, trenching, and lifting.
The Cat ® C 7.1 mechanically controlled engine meets China Nonroad Stage III emission standards.
The low-pressure fuel system allows the engine to be more robust in areas with low-quality fuel.
The high-efficiency main pump delivers superior power for best-in-class performance.
Economy mode burns less fuel than the previous generation 32 0D2 with no loss in lift or dig force.
The variable-speed fan with viscous clutch reduces fuel consumption.
The 320D2 has the largest structures in its size class.
The modified X-frame structure provides long life and durability.
Heavy-duty booms and sticks are built for tough work .
Greased track link bet ween pins and bushings increases undercarriage life and reducesnoise.
Model |
320D2 |
Manufacturer |
CATERPILLAR |
Size |
Medium -Scale |
Condition |
Used in good condition |
Operating Weight |
20970KG |
Engine |
CAT C6.6 |
Rated Power |
Gross: 111 kW Net: 103kW |
Engine RPM |
Operation: 1,700rpm, Travel: 1,800rpm |
Max. Travel Speed |
5.6 km/h |
Swing Speed |
10.9 rpm |
Max. Loading Height |
6490 mm |
Max. Digging Radius |
9890 mm |
Max. Digging Depth |
6720 mm |
Warranty |
1 Year |
